Description

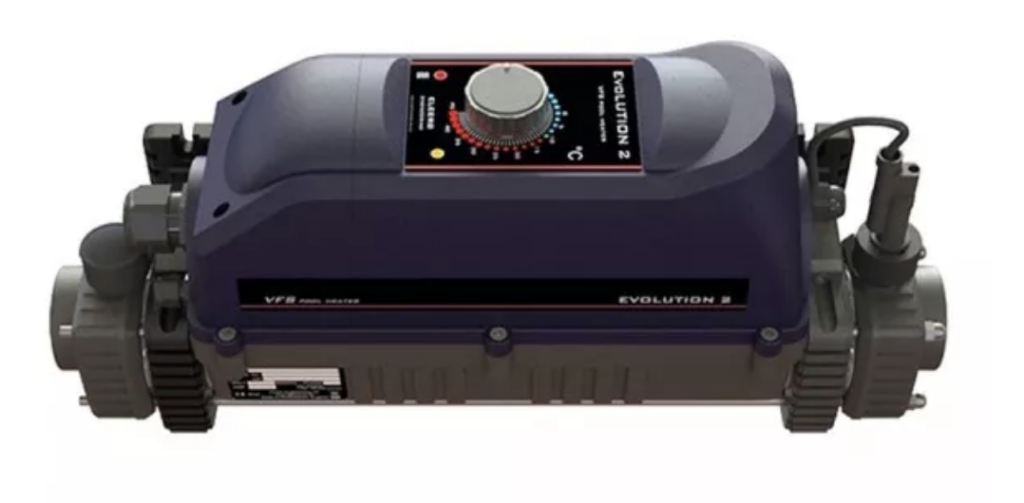

Elecro Evolution 2 Titanium Electric Heater
Features
- Ten power options ranging from 3 kW to 24 kW.
- Easy installation, fully equipped and pre-wired device.
- Robust and durable construction.
- The ultra-reliable flow switch ensures safe operation.
- Temperature thermostat and overheat sensor.
- Compact and durable design.
- Water drain tube and heating element made of titanium.
- Can be mounted on the floor or vertically on the wall.
- Long-life vortex, clean heating element technology.
- 100% effective throughout the product's lifespan.
- Silent operation.
- Analog control with 1.2˚Cu differential, digital control with 0.5˚C differential and selectable multi-language display.
- Grade 1 titanium resistors.
- Water drain tube: grade 1 titanium.
- Temperature control from 0º to 40ºC.
- 60ºC safety thermostat
- Minimum flow rate: 2 kW to 6 kW, 1 m³/h.
- Minimum flow rate: 9 kW to 24 kW, 4 m³/h.
- Maximum flow rate: 17 m³/h.
- Flow switch: blade switch with gold tip and titanium pivot axis.
- Maximum pressure of 5 bars.
- Floor or wall mounting.
- Potentiometer.
- Power supply: 220 – 240 V.
- Frequency: 50/60 Hz.
- Ingress protection rating: IP44.
- Analog control thermostat (graduated in 1°C increments).
- Flow detector: contact wire coated with a layer of gold and titanium shaft.
- Seals with a special high-temperature polymer formula.
- Application of the European Electromagnetic Compatibility Directive 89/336/EEC and 93/068/EEC standards.
