Description

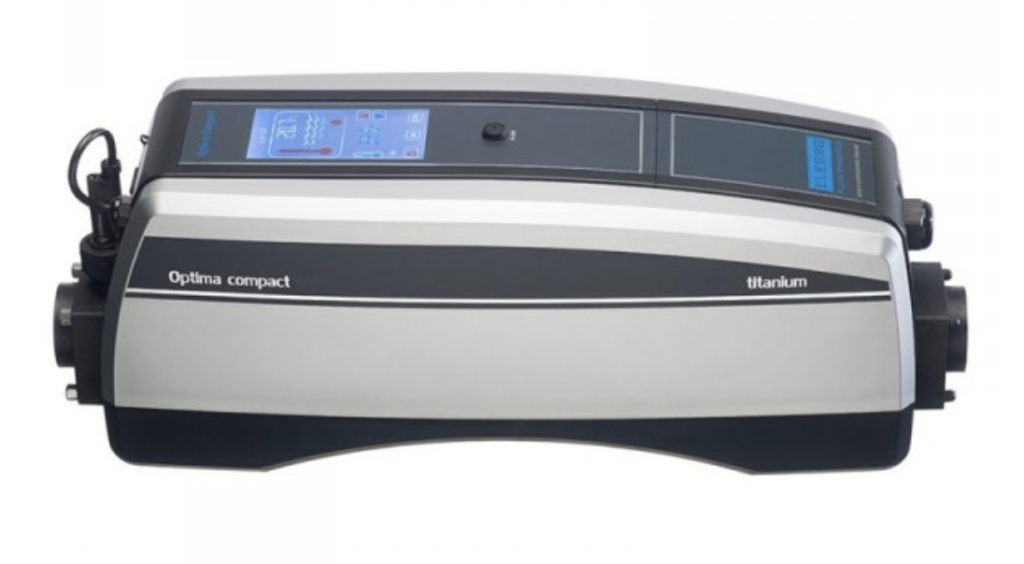

ELECTRO OPTIMA COMPACT ELECTRIC POOL HEATER
The Elecro Optima Compact is a state-of-the-art appliance, ideal for heating water in swimming pools and spas. A high-performance water heater offering guaranteed quality.
In addition to its sophisticated technology and cutting-edge features, it is manufactured with excellent materials to enhance its efficiency and longevity. It is equipped with titanium heating elements and its body is made of AISI-316 stainless steel. Thanks to its robust and compact design, which facilitates installation, it can be mounted on the floor or wall.
Its intelligent control panel is backlit for always perfect visibility thanks to the touch screen which allows very easy and intuitive use.
It operates very efficiently and quietly. You can choose the model best suited to your pool from a variety of models ranging from 3 to 18 kW. Models for three-phase installation are available
Features:
- Thermostat 55ºC (manual reset).
- Equipped with titanium heating elements with a cleaning and anti-corrosive vortex effect that requires no maintenance.
- BS 316L stainless steel tubes (EN-14432).
- Schneider Electric contactors mounted in cascade.
- Wiring. With a high-temperature silicone sheath and twisted copper conductors.
- Seals. Special high-temperature polymer formulation.
- Water fittings. 1.5″ BSP female, with ABS adapter for 1½” pipes up to 50 mm.
- Pressure: 4 bars maximum.
Minimum flow rate:
- Models from 3 to 6 kW: 1 m³/h
- Models from 9 to 18 kW: 4 m³/h
- Maximum flow rate of 17 m³/h
- Recommended flow rate: 10 m³/h
