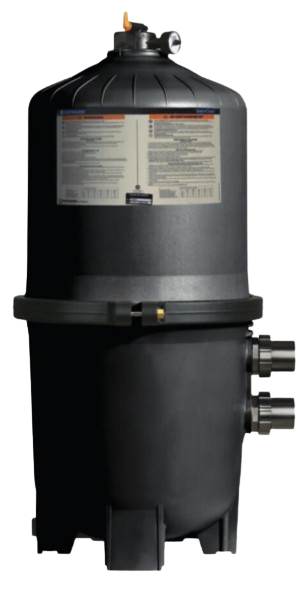

Hayward SWIMCLEAR Multi Cartridge Filter
The advantages of the Swimclear cartridge filter
- High filtration fineness (20 to 25 microns)
- Easy maintenance: Only one filter element to clean
- Savings on water, heating and chemicals (ideal with electrolyzer)
- Fiberglass-reinforced tank, compatible with salt water and weather-resistant
- Compact design
- 50/63mm connection (depending on the model chosen, see below)
- Works particularly well with a variable speed pump
4 models of the Swimclear cartridge filter
Swimclear C3030 – 30m2 :
- It has a flow rate of 14m3/h, for an effective filtering surface of 30m2.

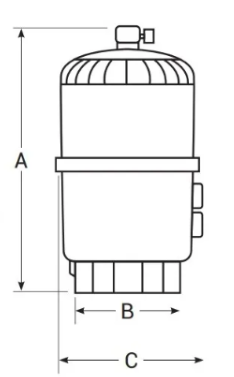

- A / B / C – 880 / 457 / 660mm
- Weight: 27 kg
- Connection: 50mm

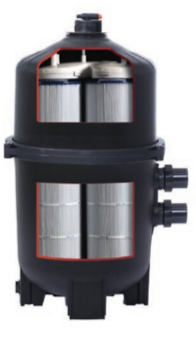

- Can hold 4 cartridges up to 493.7mm tall
Swimclear C4030 – 39m2 :
- It has a flow rate of 22m3/h, for an effective filtering surface of 39m2.
- A / B / C – 1030 / 457 / 660mm
- Weight: 31 kg
- Connection: 50mm
- Can hold 4 cartridges that are 641.35mm tall
Swimclear C5030 – 49m2 :
- It has a flow rate of 30m3/h, for an effective filtering surface of 49m2.
- A / B / C – 1180 / 457 / 660mm
- Weight: 36 kg
- Connection: 50/63mm
- Can hold 4 cartridges up to 833.4mm tall
Swimclear C7030 – 63.20m2 :
- It has a flow rate of 35m3/h, for an effective filtering surface of 63.20m2.
- A / B / C – 1330 / 457 / 660mm
- Weight: 39 kg
- Connection: 63mm
- Can hold 8 cartridges up to 485.8mm tall
