Hayward SwimClear high-performance cartridge filter, no backwash required

Hayward SwimClear Cartridge Filter – Single Cartridge

The Hayward SwimClear Mono Cartridge filter guarantees high-performance filtration, delivering crystal-clear swimming water far superior to that obtained with a traditional sand filter. Its single-element technology optimizes filtration capacity, doubling the efficiency of impurity retention while ensuring reliable and long-lasting operation.

Highlights of the Hayward SwimClear Mono Cartridge Filter

  • High-performance filtration for clearer water
  • Single-cartridge technology ensures better retention of impurities
  • Compact and robust design, suitable for residential swimming pools
  • Easy maintenance with no need for backwashing
  • Significant reduction in water consumption
  • 5-year warranty for the equipment and 10-year warranty for the tank

Models available depending on the pool volume

  • FM10: Suitable for pools up to 20 m³
  • FM15: Suitable for pools up to 30 m³
  • FM20: For swimming pools up to 40 m³

To ensure optimal performance and extend the filter's lifespan, replacement cartridges are available, as well as complementary products such as FLOVIL flocculant and Welclean cartridge cleaner.

Designed to last, the Hayward SwimClear filter is an effective and economical solution for maintaining impeccable water quality in your residential swimming pool.

We deliver this product throughout Europe. Free delivery in mainland France subject to conditions.

Price range: €40.92 to €1,099.68 VAT included

Hayward SwimClear Cartridge Filter – Single Cartridge

The Hayward SwimClear Mono Cartridge filter is a high-performance filtration solution designed to deliver crystal-clear water while reducing maintenance and water consumption. Thanks to its high-capacity single-cartridge filtration technology, it provides a filtration fineness of 15 to 20 microns, ideal for residential pools.

Compact and robust, the SwimClear integrates easily into even the most confined technical rooms while guaranteeing excellent filtration quality. Unlike sand filters, it does not require backwashing, thus allowing for significant water savings.


The advantages of the Hayward SwimClear filter

  • Ultra-fine filtration of 15 to 20 microns
  • Clearer, more crystalline water
  • Water savings thanks to the absence of backwashing
  • Simple maintenance with quick access to the cartridge
  • Permaglass XL™ high-resistance tank
  • Quiet operation and low voltage drop
  • Compatible connections Ø50 and Ø63 mm
  • Pressure gauge and manual air vent included
  • Compact installation ideal for small technical spaces


























Available models

SwimClear FM10

  • Recommended water volume: up to 20 m³
  • Filtration area: 10 m²
  • Recommended pump flow rate: 7 to 11 m³/h

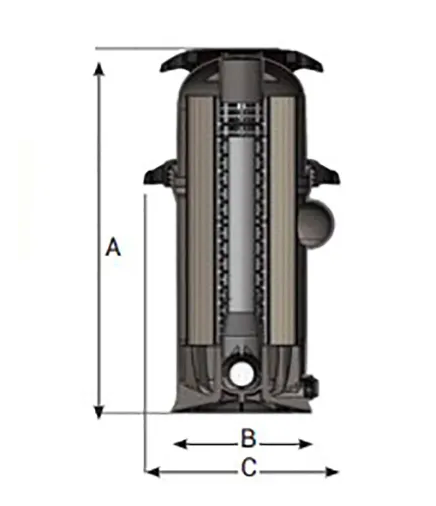

  • Diameter: 330 mm
  • Height: 775 mm

The FM10 is perfectly suited to small pools or compact basins requiring efficient filtration with a small footprint.


SwimClear FM15

  • Recommended water volume: up to 30 m³
  • Filtration area: 15 m²
  • Recommended pump flow rate: 11 to 13 m³/h
  • Diameter: 330 mm
  • Height: 857 mm

The FM15 offers a larger filter surface area, allowing for longer intervals between cleanings while improving filtration comfort.


SwimClear FM20

  • Recommended water volume: up to 40 m³
  • Filtration area: 20 m²
  • Recommended pump flow rate: 13 to 15 m³/h
  • Diameter: 330 mm
  • Height: 984 mm

The FM20 is the highest-performing model in this range. Its large filtration capacity ensures excellent water quality with minimal maintenance.

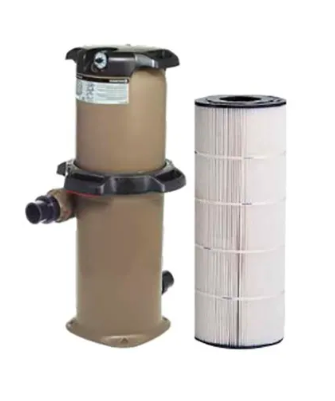

Replacement cartridges available

To maintain optimal performance, genuine Hayward replacement cartridges are also available:

  • FMC10 cartridge for FM10 filter
  • FMC15 cartridge for FM15 filter
  • FMC20 cartridge for FM20 filter

Hayward filter elements provide excellent impurity retention capacity while ensuring a long service life.


Recommended complementary products

FLOVIL Flocculant

FLOVIL flocculant improves filtration efficiency by clumping together the finest particles, making them easier for the filter cartridge to capture. This results in even clearer water without prematurely clogging the cartridge.

Welclean – Cartridge Cleaner

Welclean is specially designed for cleaning and degreasing filter cartridges. It helps eliminate deposits, oily residues, and impurities to extend cartridge life and maintain optimal performance.


Additional information

  • Maximum pressure: 3.5 bar
  • Operating pressure: 0.5 to 1.3 bar
  • Integrated 1 1/2" drain
  • Compatible with in-ground and above-ground pools depending on installation
  • Simple installation and quick maintenance



Need advice or a quote?
📧 Contact: pc@alu-floors-scandinavia.com
🟢 WhatsApp: +33 (0)6 34 06 00 59

We deliver this product throughout Europe.

  • Product type: Cartridge filter
  • Brand: Hayward
  • Model: SwimClear Mono Cartridge
  • Technology: High-capacity single cartridge
  • Filtration fineness: 15 to 20 microns
  • FM10 filtration surface: 10 m²
  • Maximum pool volume FM10: up to 20 m³
  • Recommended pump flow rate FM10: 7 to 11 m³/h
  • FM10 diameter: 330 mm
  • FM10 height: 775 mm
  • FM15 filtration area: 15 m²
  • Maximum pool volume FM15: up to 30 m³
  • Recommended pump flow rate FM15: 11 to 13 m³/h
  • FM15 diameter: 330 mm
  • FM15 height: 857 mm
  • FM20 filtration area: 20 m²
  • Maximum pool volume FM20: up to 40 m³
  • Recommended pump flow rate FM20: 13 to 15 m³/h
  • FM20 diameter: 330 mm
  • FM20 Height: 984 mm
  • Tank: High-strength Permaglass XL™
  • Maximum pressure: 3.5 bar
  • Operating pressure: 0.5 to 1.3 bar
  • Integrated drain: 1 1/2"
  • Compatible connections: Ø50 mm and Ø63 mm
  • Pressure gauge: Included
  • Air purge: Manual included
  • Installation: Compatible with in-ground and above-ground pools
  • Maintenance: Simple with quick access to the cartridge
  • Operation: Silent
  • Pressure drop: Low
  • Equipment warranty: 5 years
  • Tank warranty: 10 years
