Description
Product Benefits
- Technological innovations: redesigned components for easier installation and improved durability
- Covéo® engine
- Electronic limit switches: pulse on opening and maintained contact on closing
- Aesthetics: perfect integration of the swimming pool

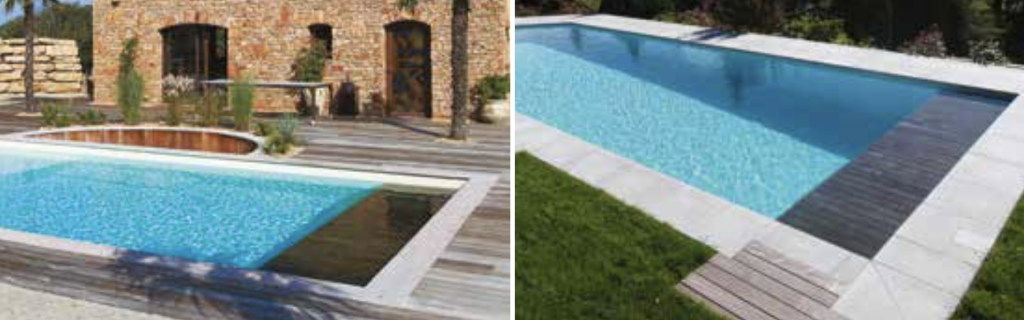

- Submerged duckboards providing a sunbathing area
Technical specifications
- Maximum pool dimensions : 8 x 20 m
- Axle : Anodized aluminum, 160 mm diameter. Counterweight kit.
- Covéo® 24 V tubular motor with electronic limit switch, encased in a sealed cartridge.
- Enclosure: 220V/24V electrical enclosure with motor protection and terminals for communication with the salt electrolyzer.
Sealing kit: connection box with IP68 liquid insulating gel. Surface or recessed mounting. - Engine mounts : Invisible below the waterline. New passivated stainless steel parts for sealing or screwing, with identification markings. Factory-installed mounting brackets.
- Motor cable passage : 20 mm diameter outlet, universal fitting and 50 mm PVC adapter kit.
- Beams : 2 anodized aluminum beams measuring 120 x 80 mm, 1 front beam and 1 rear beam, adapted to the new fixing clips. New parts to be sealed/screwed and beam brackets.
- Partition : Masonry partition or PVC partition with U-shaped tracks and a new piece to be sealed.
- Grating : Fixing with factory-fitted beam clips.
- Blades : Choice of 5 opaque PVC colours, 2 solar PVC colours and 1 solar polycarbonate colour.
- Safety fixings : Autofix 2.0, wall brackets (default) or coping brackets.
CUSTOMIZE YOUR APRON
Our slats are insulating, waterproof, strong, and treated to be UV and stain resistant. An additional UV treatment is applied to the solar slats.
BLADE SELECTION
- opaque PVC
- Solar PVC
- Polycarbonate
- Solar polycarbonate
CHOOSE YOUR BEACH
GRATING
A wide choice of materials for a beach area perfectly integrated into the pool.
The decking tiles attach to the double beam in one click thanks to their fixing clips!
- PVC grating to be draped with reinforced PVC
- Polyester grating to be tiled with mosaic
- Smooth ipe wood (exotic wood) decking
- Porcelain stoneware grating
Porcelain stoneware grating
- Light grey concrete
- Medium grey stone
- Black slate
- Wood Look
BLADE FINISH
Four types of fins, matching the blades, help to reduce the functional gap between the apron and the edge of the pool.
10, 20 or 30 mm fins , brush fin
APRON FINISH
Square finish Smooth finish
OPTION Autofix 2.0®
The fully automated automatic cover. Effortless security and perfect aesthetics!
- Revolutionary, the cover locks and unlocks without manual action.
- Economical: Autofix 2.0 uses magnetic energy, no electrical input is required.
- Invisible: the receptors are placed behind the coating.
- Design: perfect integration of modules within the thickness of a blade, color matching the apron.
- Installation is possible in both new construction and renovation projects on APF automatic submerged pool covers
- Securing your swimming pool in accordance with the NF P 90-308 standard.
Without Autofix With Autofix
APF CONNECT COVER CONTROL OPTION
Control your automatic cover with your smartphone using the Cover Control module.
- Intuitive synchronization via Bluetooth network.
- Compliant with standard NF P 90-308.
- Pairing multiple smartphones or tablets is possible.
- Security code requested.
- Free application available for Apple and Android.
A dedicated assembly manual for in-line motor pool diving. Featuring clear and comprehensive 3D diagrams:
A VIDEO TUTORIAL ON PASV IMPLEMENTATION is available on our YouTube channel:
A VIDEO TUTORIAL ON THE COMPLETE INSTALLATION OF THE POOL DIVING MOTOR WITH THE MOTOR IN AXIS is available on our YouTube channel:
